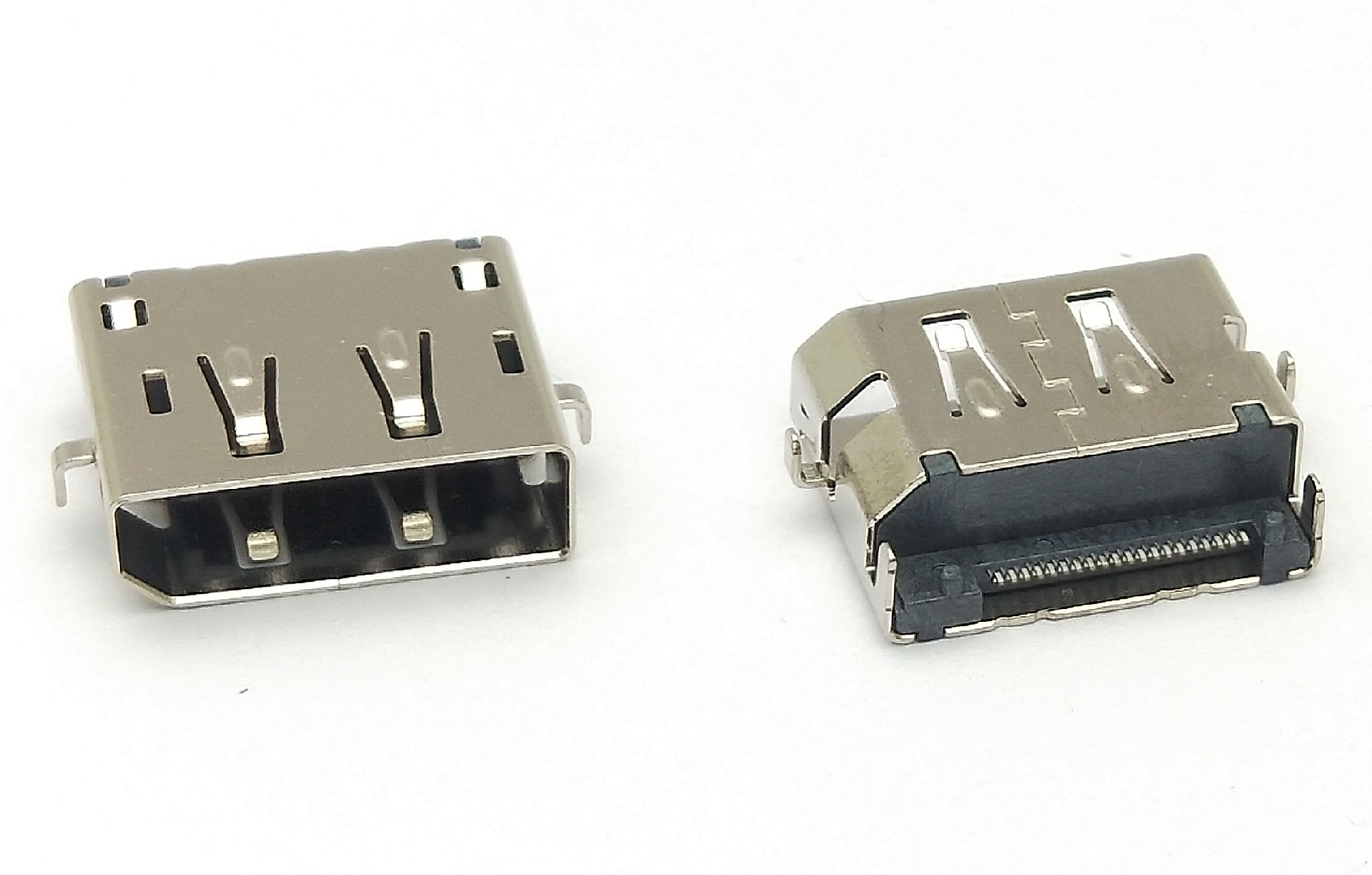

名稱：Display Port 母頭 SMT 沉板式 無翻邊，1.2 PCB 置中

NOTE:

A. MATERIAL:

 1. Housing: LCP(HF) UL94V-0 Black

 2. Contact: Copper Alloy

 3. Shell: Steel

B. PLATING:

 1. Contact: Contact Area Gold Plated

           Solder Area Sn Plated

           Under Plated Nickel

 2. Shell: Nickel Plated

C. SPECIFICATION:

 1. Current: 0.5A

 2. Voltage: 40V RMS

 3. Withstanding Voltage: 500V AC

 4. Contact Resistance: 忖R=30 m次 max. (Contact)

                   忖R=50 m次 max. (Shell)

 5. Insulation Resistance: 100 M次 min.

 6. Temperature Range: -20°C to +85°C

 7. Mating And Unmating Force:

    7.1 Mating  Force: 4.5Kgf(44.1N)Max.

    7.2 Unmating Force: 1.0Kgf~4.0Kgf(9.8N~39.2N)

 8. Durability: 10000 Cycles
